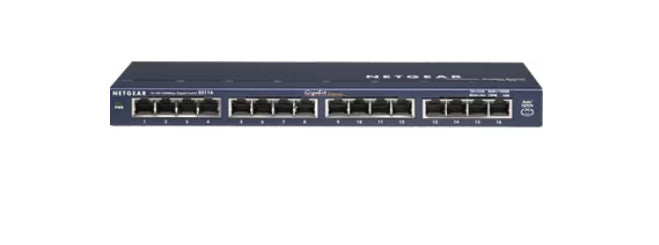

The GS105, GS108 & GS116 Gigabit Ethernet Switches are equipped with 10/100/1000 Mbps ports giving your small or growing business network the capacity to handle huge workloads.
- Moves very large files instantly across your network
- 10 x faster than standard Fast Ethernet (10/100)
- Full duplex, providing up to 2000 Mbps on each port
- Auto-sensing on each port detects at the best network speed (10, 100 or 1000)
- Auto Uplink™ technology auto adjusts for different types of Ethernet cable
- The compact, sturdy metal case fits easily on a desk or mounts on a wall
Gigabit Ethernet ConnectivityThe GS105, GS108 and GS116 unmanaged desktop switches are standards based for easy integration of Ethernet (10 Mbps), Fast Ethernet (100 Mbps) and Gigabit Ethernet (1000 Mbps) devices. These Switches feature 5, 8 or 16 ports. Every port of the GS105, GS108 and GS116 automatically senses the right speed and full/half duplex mode, and Auto Uplink technology automatically adjusts for straight-through or crossover cables.
Easy to UseWith NETGEAR's GS105, GS108 and GS116 desktop switches, you can take gigabit to the desktop in minutes, just plug and play! Once connected, these switches provide you a powerful, high-speed network.
Value for MoneyThe GS105, GS108 and GS116 are affordable Gigabit switches giving your network the capacity to handle heavy workloads and move very large files across your small business network instantly and easily.
Specifications
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network |
| Networking standards | IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Data transmission |
| MAC address table | 1000 entries |
| Switching capacity | 3.2 Gbit/s |
| Maximum data transfer rate | 0.1 Gbit/s |
| Packet buffer memory | 0.096 MB |
| Protocols |
| Data link protocols | Ethernet, Fast Ethernet |
| Design |
| Safety | CE; CE/LVD EN60950 |
| Performance |
| Mean time between failures (MTBF) | 116009 h |
| Power |
| Power consumption (typical) | 80 W |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Other features |
| Latency | 20 µs for 64-byte frames |
| Data transfer rate | 100 Mbit/s |
| Dimensions (WxDxH) | 287 x 103 x 27 mm |
| Power requirements | 48VDC, 4.5 power output |
| Operational conditions |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 10 - 70 °C |
| Storage relative humidity (H-H) | 95 |
| Weight & dimensions |
| Width | 286 mm |
| Depth | 102 mm |
| Height | 27 mm |
| Weight | 828 g |
| Other features |
| Electromagnetic emissions | CE mark, commercial, FCC Part 15 Class A, VCCI Class A, EN 55022 (CISPR 22) Class A, C-Tick |
