Time to upscale your displaySamsung’s new QMT-B series displays cut through the clutter to deliver best-in-class UHD resolution as well as intelligent UHD upscaling and rich flawless colors with Dynamic Crystal Color all in a slim design.
Incredible 4K picture qualityEmpower your customers to experience pure visual innovation with lifelike images in sharper picture quality than ever before.
Marvel at the lifelike Color expression
Dynamic Crystal DisplayImmerse your customers in every picture with a wider range of color. Dynamic Crystal Display creates lifelike images allowing the viewer to see even the subtlest details.
Perfect view with non-glare displayThe QMT-B series features reliable, non-glare panels that provide better visibility from all angles, anytime of day allowing businesses to deliver accurate information 24/7 in locations where clear and accurate information is crucial such as airports and commuter stations.

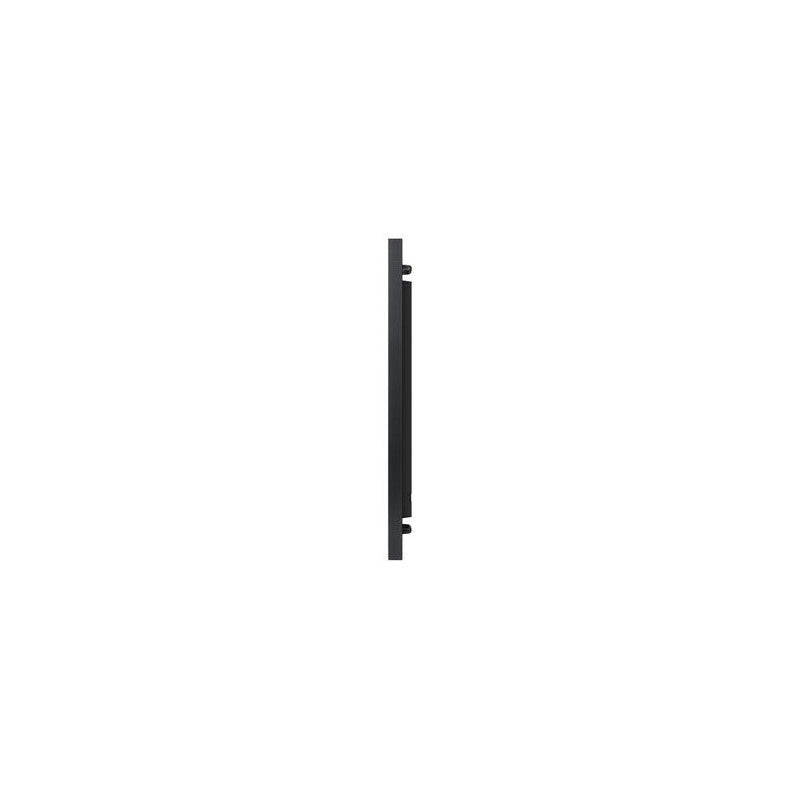

Slim and symmetrical designSlim, symmetrical design that will stand the test of time and ensure the QMT-B series blends seamlessly into any environment, with simple installation to get your display up and running as soon as possible.

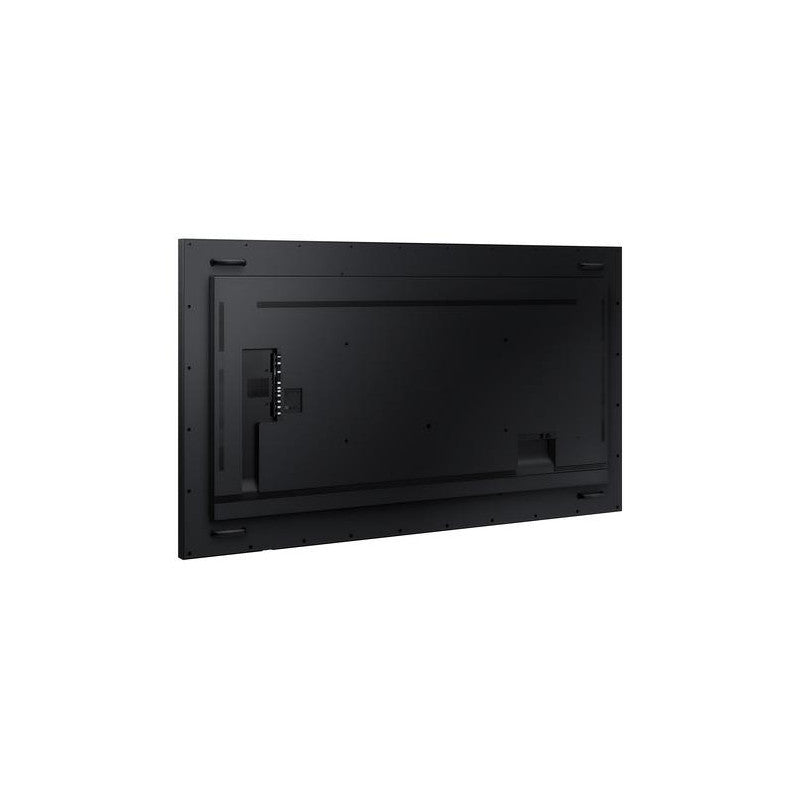

Clean cable managementWith QMT-B's new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping experience for customers, even when the back of the display is visible.
Powerful, all-in-one solutionSSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.
Specifications
| Display |
| Display diagonal | 2.49 m (98") |
| Display technology | LCD |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | No |
| Panel type | IPS |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200 |
| Dynamic contrast ratio marketing name | Mega Contrast |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.5622 x 0.5622 mm |
| Display diagonal (metric) | 248 cm |
| Haze rate | 25% |
| Pixel frequency (max) | 594 MHz |
| Colour gamut | 72% |
| Ports & interfaces |
| HDMI ports quantity | 2 |
| DVI port | Yes |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| HDMI version | 2.0 |
| HDMI input ports quantity | 2 |
| DisplayPorts in | 1 |
| DisplayPort version | 1.2 |
| USB ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 interface | Yes |
| Infrared data port | Yes |
| Remote (IR) input | 1 |
| Design |
| Product design | Digital signage flat panel |
| Product colour | Black |
| Placement supported | Indoor |
| VESA mounting | Yes |
| Screen shape | Flat |
| Panel mounting interface | 800 x 400 mm |
| Bezel width (bottom) | 1.79 cm |
| Bezel width (side) | 1.79 cm |
| Bezel width (top) | 1.79 cm |
| Bezel colour | Charcoal Black |
| Performance |
| Purpose | Universal |
| TV tuner integrated | No |
| HDCP | Yes |
| HDCP version | 2.2 |
| Power |
| Power consumption (typical) | 616 W |
| Power consumption (sleep) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Computer system |
| Computer system | Yes |
| Built-in processor | Yes |
| Computer system type | System on Chip (SoC) |
| Operating system installed | Tizen 4.0 |
| Weight & dimensions |
| Display width | 2195.8 mm |
| Display depth | 96.5 mm |
| Display height | 1250.8 mm |
| Display weight | 83 kg |
| Packaging data |
| Package width | 2369 mm |
| Package depth | 350 mm |
| Package height | 1405 mm |
| Package weight | 106 kg |
| Operational conditions |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Certificates |
| Certification | Class A\n60950-1, 62368-1 |
| Logistics data |
| Harmonized System (HS) code | 85285210 |
| Other features |
| Audio input | Y |
| Flash memory | 8000 MB |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Video out | Y |
| RJ-45 input ports | 1 |
| Technical details |
| Audio out (mini jack) | 1 |
| Other features |
| Optional features | WMN8200SG |
