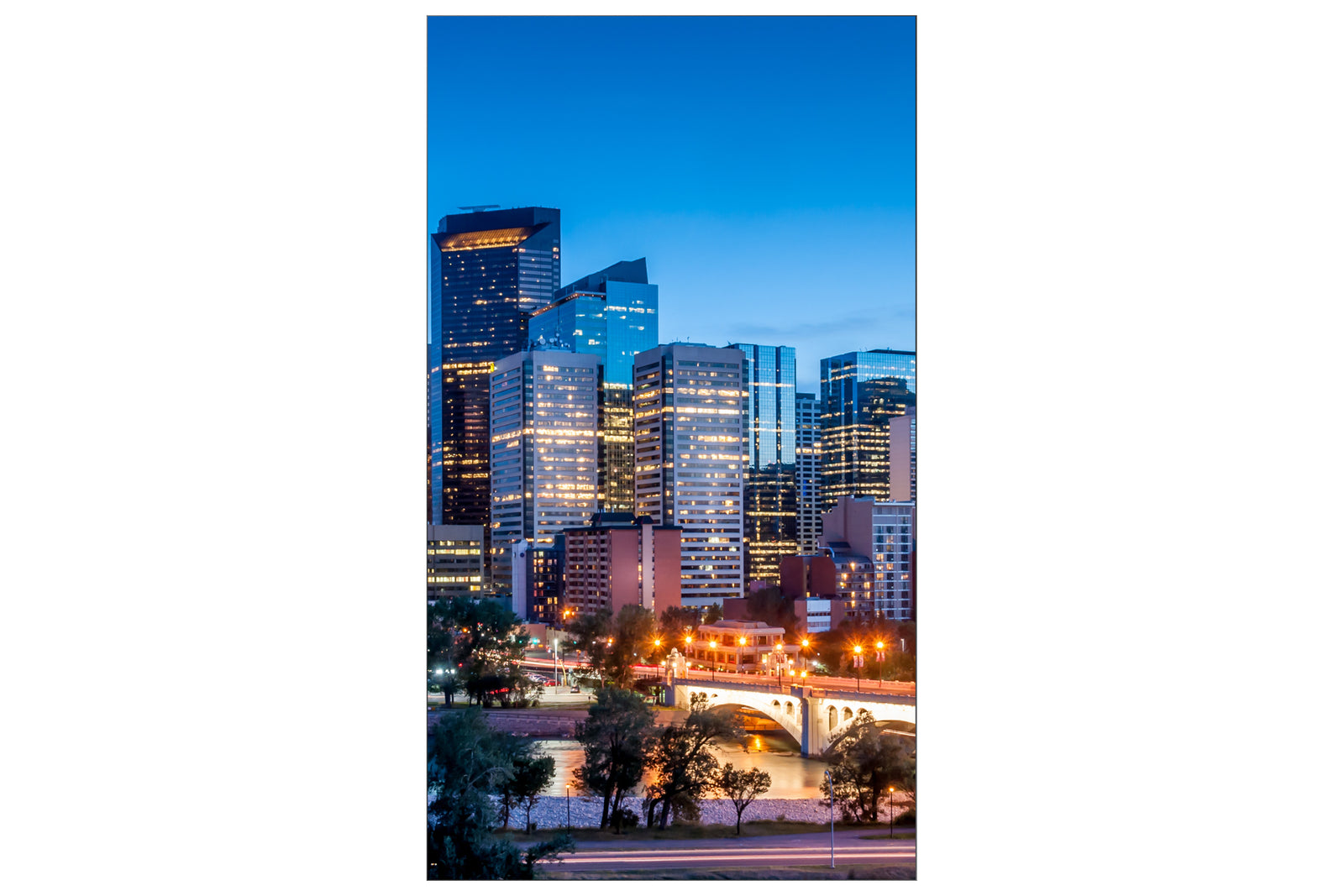

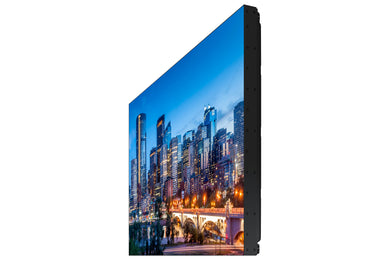

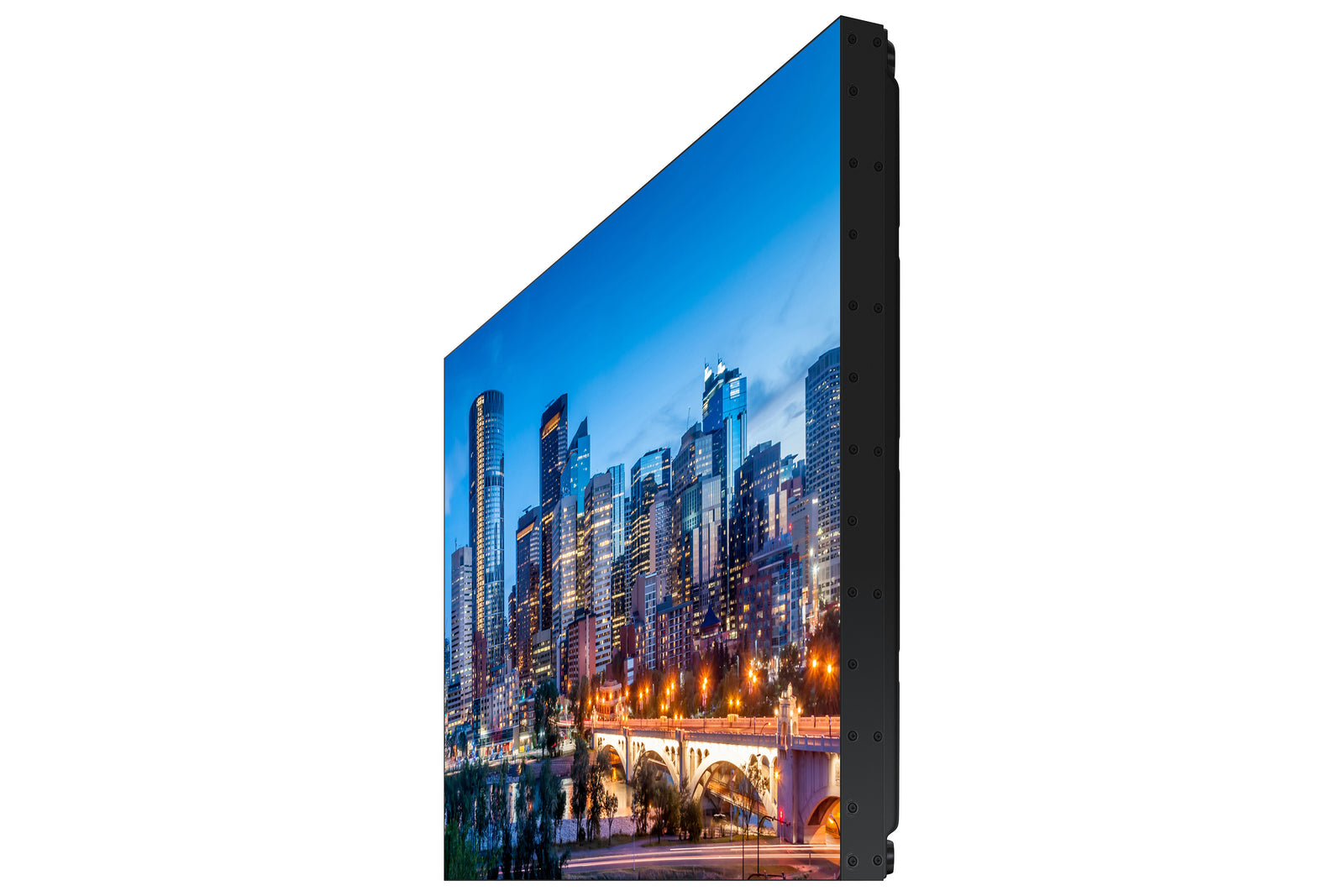

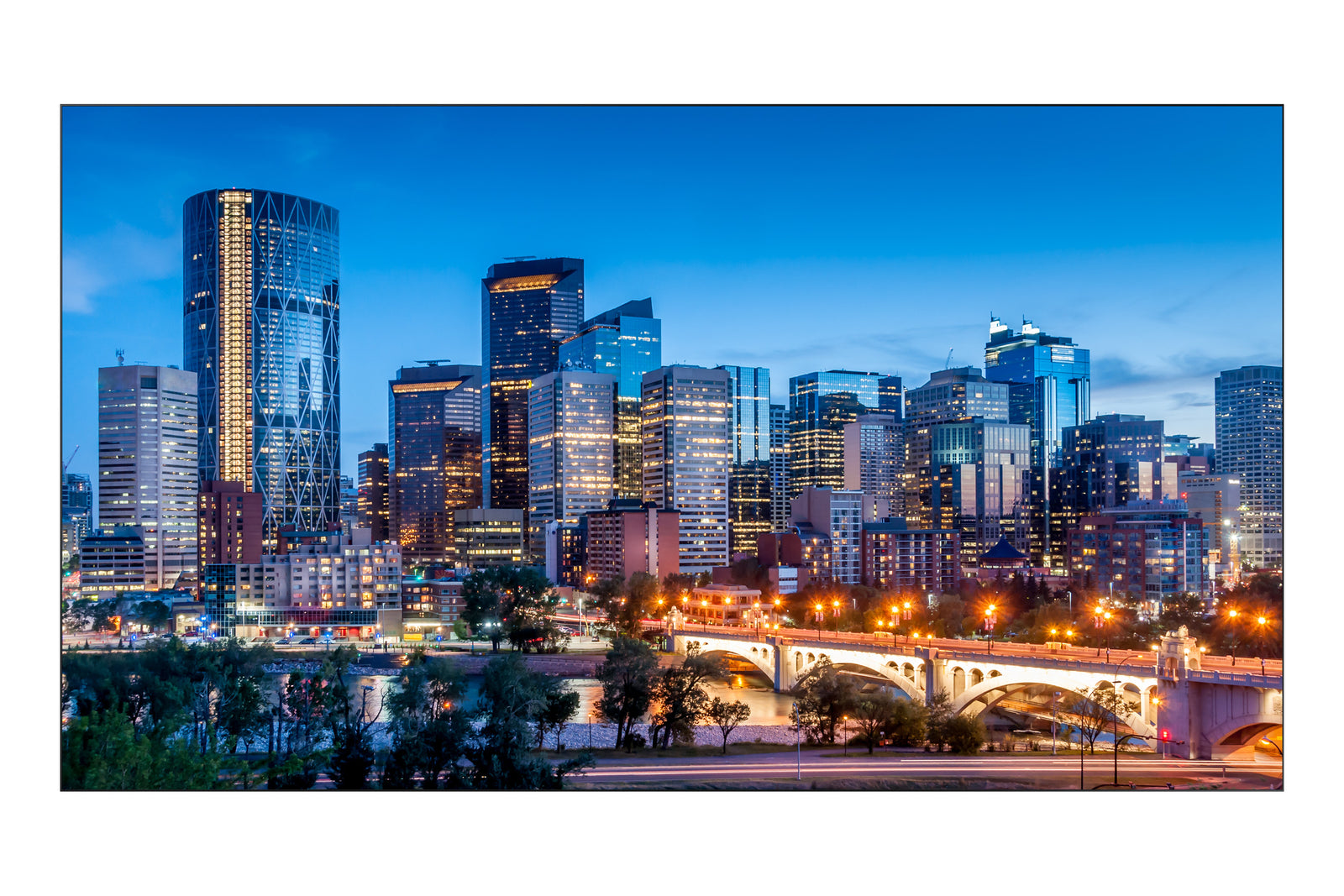

The Samsung VMC-E VM55C-E is a 55-inch videowall display featuring an ultra-narrow 1.74 mm bezel and a brightness of 500 cd/m². It offers Full HD resolution and wide viewing angles, ensuring clear and vibrant images even when viewed indirectly. Designed for 24/7 operation, this display is ideal for applications in shopping malls, lobbies, meeting rooms, and control rooms. With its slim design and flexible installation options, businesses can create captivating visual experiences that engage customers and visitors.
| Display |
| Display technology | LCD |
| Pixel pitch | 0.63 x 0.63 mm |
| Display brightness | 500 cd/m² |
| Display diagonal | 139.7 cm (55") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Panel type | IPS |
| Aspect ratio | 16 |
| Pixel frequency | 78 MHz |
| Contrast ratio (typical) | 1000 |
| Contrast ratio (dynamic) | 100000 |
| Response time | 0.008 s |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Horizontal scan range | 57.3 - 70 kHz |
| Vertical scan range | 47 - 63 Hz |
| Haze rate | 28% |
| Colour gamut | 72% |
| Operating hours (hours/days) | 24/7 |
| Display diagonal (metric) | 138 cm |
| Design |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Bezel colour | Black |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 600 x 400 mm |
| Product colour | Black |
| Ports & interfaces |
| HDMI ports quantity | 2 |
| HDMI input ports quantity | 1 |
| HDMI version | 2.0 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPorts in | 1 |
| DisplayPort version | 1.2 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| USB port | Yes |
| USB ports quantity | 1 |
| HDCP | Yes |
| HDCP version | 2.2 |
| IR input ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Video out | Yes |
| Power |
| Power consumption (typical) | 220 W |
| Power consumption (sleep) | 0.5 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 113 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Technical details |
| Compliance certificates | CB, Federal Communications Commission (FCC) |
| Sustainability |
| Certification | FCC (USA) Part 15, Subpart B Class B CE (Europe) |
| Weight & dimensions |
| Width | 1212.2 mm |
| Depth | 70.4 mm |
| Height | 683 mm |
| Weight | 19.5 kg |
| Packaging data |
| Package width | 1398 mm |
| Package depth | 257 mm |
| Package height | 844 mm |
| Package weight | 27.1 kg |
| Sustainability |
| Sustainability compliance | Yes |
